Available for 6, 8, 9, and 12 rows.

• Leaf residue is placed between the rows, ensuring even soil coverage and optimal use of organic material.
• Lightweight, maintenance-free design.
• Optimized visibility thanks to a flat topper hood.

Optional combination shaft: A combination of T-knives and rubber flails, ensuring clean leaf removal.

For 6 rows

• Placement between the rows or distribution onto the already harvested area using the leaf spreader.
• Switching between leaf placement and the leaf spreader at the push of a button for flexibility and convenience.
• Optional HOLMER leaf belt for leaf collection and further use of the biomass.

• Additional equipment option for HS I (6–12 rows) and HS KO.
• Longitudinal cleaning shafts gently remove leaves.

• Optional equipment instead of the DynaCut scalper.
• Second topper shaft with reverse-rotating rubber flails for gentle leaf removal.
• Less damage to beet heads and no beet heads left in subsequent crops.

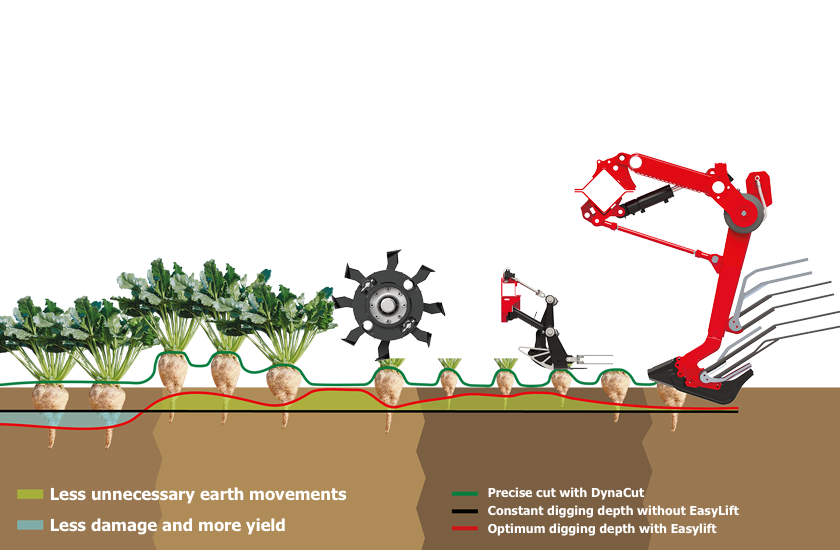

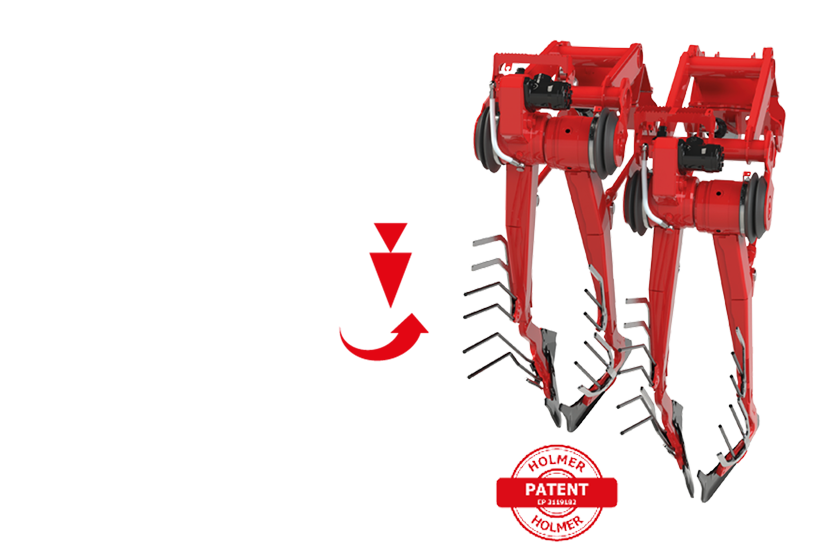

Regardless of varied beet heights, wheel tracks, or uneven crop growth, the HOLMER EasyLift system ensures each beet is harvested at the optimal depth.

• Optimal working depth
  Automatic depth control of individual digging shoes, based on beet head height, prevents breakage losses and damage.
• Reduced operator fatigue
  The automatic depth regulation makes operation easier, reducing strain on experienced operators during long workdays.
• Minimized fuel consumption and wear
  Over-deep harvesting is prevented by the automatic height control, extending the machine’s lifespan and lowering operating costs. Even a 1 cm deeper harvest moves approx. 100 t of unnecessary soil per hectare.

8-, 9-, or 12-row lifting units for an even more efficient harvesting process with the Terra Dos 5.

• Improved soil protection
  Through harvesting in crab steering and reduced passes.
• Optimized logistics concept
  Rapid unloading during harvesting, even onto high unloading vehicles, is possible with the long harvesting belt – for more harvesting performance.
• Enhanced efficiency
  The wider lifting units enable a higher output of the harvester. You achieve maximum efficiency through the utilization of machine capacity and reduces operating costs.
• EasyConnect – Quick and simple coupling
  The lifter can be comfortably attached and detached single-handedly with all supply lines from the driver’s seat with the HOLMER EasyConnect quick coupling system. For fast setup times and occupational safety.
• Easy transport
  The lifter can be attached to the harvester with the appropriate HOLMER transport cart for traveling on roads.

The largest turbine cleaning system on the market uses high centrifugal forces to ensure maximum cleaning of the beets. This guarantees that only clean, undamaged beets enter the bunker

• 12% larger turbine area offers an exceptionally large cleaning surface for clean beets. 1st turbine: Ø 1,755 mm, 2nd and 3rd turbines: Ø 1,620 mm.
• Forged, hardened turbine tines and sliding grates made of specialty steel ensure high durability.
• Each turbine tine can be individually replaced, reducing spare part costs by 15%.
• Bolted-on carriers improve crop flow and reduce wear costs.
• Segmented replacement of sliding grates and spring tines allows customized cleaning intensity.

• Adaptive Cleaning PLUS
  To maximize beet protection and reduce operator workload, the cleaning speed automatically adapts to the current beet flow rate.
• Reliable cleaning and transport performance
  Independent drives automatically regulate the speed of the transfer web and turbines based on pressure.
• Gentle processing for small beet quantities
  Automatic adaptation of the transfer web, turbines, and elevator to the beet flow prevents damage and ensures gentle cleaning.
• Fully adjustable
  The response behavior of the automatic system is individually adjustable.

With a clear, unobstructed design and a bunker capacity of 30 m³ or 45 m³, the harvester is ideal for any field size.

• Even loading and unloading
  The two-part bunker auger in the Terra Dos 5-40 ensures balanced filling.
• Wear-resistant scraper floors
  For greater durability, both the longitudinal and transverse scraper floors in the Terra Dos 5 are equipped with scraper floor slats made of long-lasting Hardox® steel. The forged scraper floor chain mounted on wear bars can withstand up to 125 kN – 25 kN more than the previous model.
• Always the right tension
  Automatic hydraulic tensioning of the scraper floor chains eliminates manual adjustments and prevents skipping.
• Know how much is there
  Ultrasonic sensors measure the bunker fill level for accurate yield estimation.

• Gentle and fast unloading
  During unloading, the centrally positioned unloading belt is evenly fed with beets from both sides. The beets can be unloaded over the 1,800 mm wide unloading belt with PU carriers within 40 or 50 seconds.
• Extra-long unloading belt
  With three articulated parts, the harvester can transfer load onto over 4 m high transport vehicles or distribute a clean pile edge from a shallow angle.
• Left-hand unloading
  The unloading belt control with continuously adjustable unloading belt speed, automatic follow-up control, and configurable programs (height and speed) is integrated into the left armrest.
